Multiple Managed Object Contexts with Core Data Tutorial

This is an abridged from our book Core Data by Tutorials, which has been completely updated for Swift 4 and iOS 11. This tutorial is presented as part of our iOS 11 Launch Party — enjoy!

A managed object context is an in-memory scratchpad for working with your managed objects.

Most apps need just a single managed object context. The default configuration in most Core Data apps is a single managed object context associated with the main queue. Multiple managed object contexts make your apps harder to debug; it’s not something you’d use in every app, in every situation.

That being said, certain situations do warrant the use of more than one managed object context. For example, long-running tasks, such as exporting data, will block the main thread of apps that use only a single main-queue managed object context and cause the UI to stutter.

In other situations, such as when edits are being made to user data, it’s helpful to treat a managed object context as a set of changes that the app can discard if it no longer needs them. Using child contexts makes this possible.

In this tutorial, you’ll learn about multiple managed object contexts by taking a journaling app for surfers and improving it in several ways by adding multiple contexts.

Getting Started

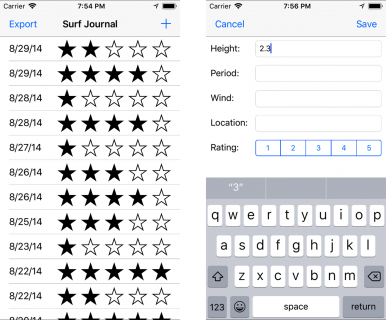

This tutorial’s starter project is a simple journal app for surfers. After each surf session, a surfer can use the app to create a new journal entry that records marine parameters, such as swell height or period, and rate the session from 1 to 5. Dude, if you’re not fond of hanging ten and getting barreled, no worries, brah. Just replace the surfing terminology with your favorite hobby of choice!

Introducing SurfJournal

Download the SurfJournal starter project here. Open the project, then build and run the app.

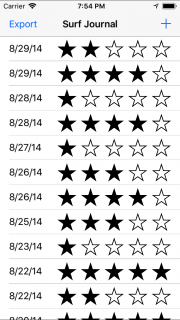

On startup, the application lists all previous surf session journal entries. Tapping a row brings up the detail view of a surf session with the ability to make edits.

As you can see, the sample app works and has data. Tapping the Export button on the top-left exports the data to a comma-separated values (CSV) file. Tapping the plus (+) button on the top-right adds a new journal entry. Tapping a row in the list opens the entry in edit mode, where you can change or view the details of a surf session.

Although the sample project appears simple, it actually does a lot and will serve as a good base to add multi-context support. First, let’s make sure you have a good understanding of the various classes in the project.

Open the project navigator and take a look at the full list of files in the starter project:

bela

Before jumping into the code, take a brief moment to go over what each class does for you out of the box.

• AppDelegate: On first launch, the app delegate creates the Core Data stack and sets the coreDataStack property on the primary view controller JournalListViewController.
• CoreDataStack: This object contains the cadre of Core Data objects known as the stack. Here, the stack installs a database that already has data in it on first launch. No need to worry about this just yet; you’ll see how it works shortly.
• JournalListViewController: The sample project is a one-page, table-based application. This file represents that table. If you’re curious about its UI elements, head over to Main.storyboard. There’s a table view controller embedded in a navigation controller and a single prototype cell of type SurfEntryTableViewCell.

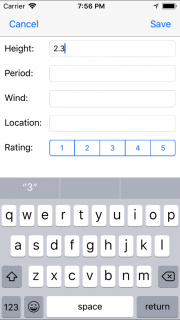

• JournalEntryViewController: This class handles creating and editing surf journal entries. You can see its UI in Main.storyboard.

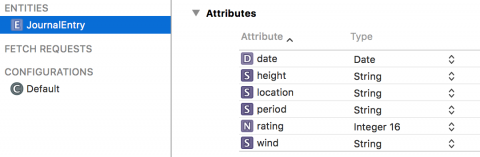

• JournalEntry: This class represents a surf journal entry. It’s an NSManagedObject subclass with six properties for attributes: date, height, location, period, rating and wind. If you’re curious about this class’s entity definition, check out SurfJournalModel.xcdatamodel.

• JournalEntry+Helper: This is an extension to the JournalEntry object. It includes the CSV export method csv() and the stringForDate() helper method. These methods are implemented in the extension to avoid being destroyed when you make changes to the Core Data model.

There was already a significant amount of data when you first launched the app.This sample project comes with a seeded Core Data database.

The Core Data Stack

Open CoreDataStack.swift and find the following code in seedCoreDataContainerIfFirstLaunch():

// 1
let previouslyLaunched =
  UserDefaults.standard.bool(forKey: "previouslyLaunched")
if !previouslyLaunched {
  UserDefaults.standard.set(true, forKey: "previouslyLaunched")

  // Default directory where the CoreDataStack will store its files
  let directory = NSPersistentContainer.defaultDirectoryURL()
  let url = directory.appendingPathComponent(
    modelName + ".sqlite")

  // 2: Copying the SQLite file
  let seededDatabaseURL = Bundle.main.url(
    forResource: modelName,
    withExtension: "sqlite")!

  _ = try? FileManager.default.removeItem(at: url)

  do {
    try FileManager.default.copyItem(at: seededDatabaseURL,
                                     to: url)
  } catch let nserror as NSError {
    fatalError("Error: \(nserror.localizedDescription)")
  }

Here’s what this version of CoreDataStack.swift contains:

1. You first check UserDefaults for the previouslyLaunched boolean value. If the current execution is indeed the app’s first launch, the Bool will be false, making the if statement true. On first launch, the first thing you do is set previouslyLaunched to true so the seeding operation never happens again.
2. You then copy the SQLite seed file SurfJournalModel.sqlite, included with the app bundle, to the directory returned by the Core Data-provided method NSPersistentContainer.defaultDirectoryURL().

Now view the rest of seedCoreDataContainerIfFirstLaunch():

  // 3: Copying the SHM file
  let seededSHMURL = Bundle.main.url(forResource: modelName,
    withExtension: "sqlite-shm")!
  let shmURL = directory.appendingPathComponent(
    modelName + ".sqlite-shm")

  _ = try? FileManager.default.removeItem(at: shmURL)

  do {
    try FileManager.default.copyItem(at: seededSHMURL,
                                     to: shmURL)
  } catch let nserror as NSError {
    fatalError("Error: \(nserror.localizedDescription)")
  }

  // 4: Copying the WAL file
  let seededWALURL = Bundle.main.url(forResource: modelName,
    withExtension: "sqlite-wal")!
  let walURL = directory.appendingPathComponent(
    modelName + ".sqlite-wal")

  _ = try? FileManager.default.removeItem(at: walURL)

  do {
    try FileManager.default.copyItem(at: seededWALURL,
                                     to: walURL)
  } catch let nserror as NSError {
    fatalError("Error: \(nserror.localizedDescription)")
  }

  print("Seeded Core Data")
}

3. Once the copy of SurfJournalModel.sqlite has succeeded, you then copy over the support file SurfJournalModel.sqlite-shm.
4. Finally, you copy over the remaining support file SurfJournalModel.sqlite-wal.

The only reason SurfJournalModel.sqlite, SurfJournalModel.sqlite-shm or SurfJournalModel.sqlite-wal would fail to copy on first launch is if something really bad happened, such as disk corruption from cosmic radiation. In that case, the device, including any apps, would likely also fail. If the files fail to copy, there’s no point in continuing, so the catch blocks call fatalError.

To support concurrent reads and writes, the persistent SQLite store in this sample app uses SHM (shared memory file) and WAL (write-ahead logging) files. You don’t need to know how these extra files work, but you do need to be aware of their existence, and that you need to copy them over when seeding the database. If you fail to copy over these files, the app will work, but it might be missing data.

Now that you know something about beginning with a seeded database, you’ll start learning about multiple managed object contexts by working on a temporary private context.

Doing Work In the Background

If you haven’t done so already, tap the Export button at the top-left and then immediately try to scroll the list of surf session journal entries. Notice anything? The export operation takes several seconds, and it prevents the UI from responding to touch events such as scrolling.

The UI is blocked during the export operation because both the export operation and UI are using the main queue to perform their work. This is the default behavior.

The traditional way to fix this is to use Grand Central Dispatch to run the export operation on a background queue. However, Core Data managed object contexts are not thread-safe. That means you can’t just dispatch to a background queue and use the same Core Data stack.

The solution is simple: use a private background queue rather than the main queue for the export operation. This will keep the main queue free for the UI to use.

But before you jump in and fix the problem, you need to understand how the export operation works.

Exporting Data

Start by viewing how the app creates the CSV strings for the JournalEntry entity. Open JournalEntry+Helper.swift and find csv():

func csv() -> String {
  let coalescedHeight = height ?? ""
  let coalescedPeriod = period ?? ""
  let coalescedWind = wind ?? ""
  let coalescedLocation = location ?? ""
  let coalescedRating: String
  if let rating = rating?.int32Value {
    coalescedRating = String(rating)
  } else {
    coalescedRating = ""
  }

  return "\(stringForDate()),\(coalescedHeight),\(coalescedPeriod),\(coalescedWind),\(coalescedLocation),\(coalescedRating)\n"
}

As you can see, JournalEntry returns a comma-separated string of the entity’s attributes. Because the JournalEntry attributes are allowed to be nil, the function uses the nil coalescing operator (??) to export an empty string instead of an unhelpful debug message that the attribute is nil.

That’s how the app creates the CSV strings for an individual journal entry, but how does the app save the CSV file to disk? Open JournalListViewController.swift and find the following code in exportCSVFile():

// 1
let context = coreDataStack.mainContext
var results: [JournalEntry] = []
do {
  results = try context.fetch(self.surfJournalFetchRequest())
} catch let error as NSError {
  print("ERROR: \(error.localizedDescription)")
}

// 2
let exportFilePath = NSTemporaryDirectory() + "export.csv"
let exportFileURL = URL(fileURLWithPath: exportFilePath)
FileManager.default.createFile(atPath: exportFilePath,
  contents: Data(), attributes: nil)

Going through the CSV export code step-by-step:

1. First, retrieve all JournalEntry entities by executing a fetch request.

   The fetch request is the same one used by the fetched results controller. Therefore, you reuse the surfJournalFetchRequest method to create the request to avoid duplication.

2. Next, create the URL for the exported CSV file by appending the file name (“export.csv”) to the output of the NSTemporaryDirectory method.

   The path returned by NSTemporaryDirectory is a unique directory for temporary file storage. This a good place for files that can easily be generated again and don’t need to be backed up by iTunes or to iCloud.

   After creating the export URL, call createFile(atPath:contents:attributes:) to create the empty file where you’ll store the exported data. If a file already exists at the specified file path, this method will remove it first.

Once the app has the empty file, it can write the CSV data to disk:

// 3
let fileHandle: FileHandle?
do {
  fileHandle = try FileHandle(forWritingTo: exportFileURL)
} catch let error as NSError {
  print("ERROR: \(error.localizedDescription)")
  fileHandle = nil
}

if let fileHandle = fileHandle {
  // 4
  for journalEntry in results {
    fileHandle.seekToEndOfFile()
    guard let csvData = journalEntry
      .csv()
      .data(using: .utf8, allowLossyConversion: false) else {
        continue
    }

    fileHandle.write(csvData)
  }

  // 5
  fileHandle.closeFile()

  print("Export Path: \(exportFilePath)")
  self.navigationItem.leftBarButtonItem =
    self.exportBarButtonItem()
  self.showExportFinishedAlertView(exportFilePath)

} else {
  self.navigationItem.leftBarButtonItem =
    self.exportBarButtonItem()
}

Here’s how the file-handling works:

3. First, the app needs to create a file handler for writing, which is simply an object that handles the low-level disk operations necessary for writing data. To create a file handler for writing, use the FileHandle(forWritingTo:) initializer.

4. Next, iterate over all JournalEntry entities.

   During each iteration, you attempt to create a UTF8-encoded string using csv() on JournalEntry and data(using:allowLossyConversion:) on String.

   If it’s successful, you write the UTF8 string to disk using the file handler write() method.

5. Finally, close the export file-writing file handler, since it’s no longer needed.

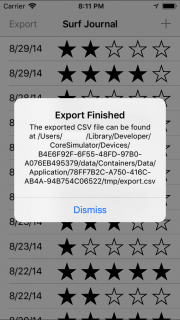

Once the app has written all the data to disk, it shows an alert dialog with the exported file path.

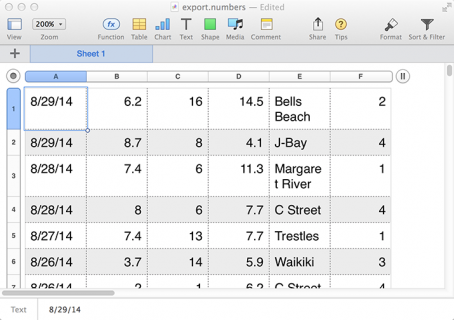

To open the exported CSV file, use Excel, Numbers or your favorite text editor to navigate to and open the file specified in the alert dialog. If you open the file in Numbers you will see the following:

Now that you’ve seen how the app currently exports data, it’s time to make some improvements.

Exporting In the Background

You want the UI to continue working while the export is happening. To fix the UI problem, you’ll perform the export operation on a private background context instead of on the main context.

Open JournalListViewController.swift and find the following code in exportCSVFile():

// 1
let context = coreDataStack.mainContext
var results: [JournalEntry] = []
do {
  results = try context.fetch(self.surfJournalFetchRequest())
} catch let error as NSError {
  print("ERROR: \(error.localizedDescription)")
}

As you saw earlier, this code retrieves all of the journal entries by calling fetch() on the managed object context.

Next, replace the above code with the following:

// 1
coreDataStack.storeContainer.performBackgroundTask { context in
  var results: [JournalEntry] = []
  do {
    results = try context.fetch(self.surfJournalFetchRequest())
  } catch let error as NSError {
    print("ERROR: \(error.localizedDescription)")
  }

Instead of using the main managed object context also used by the UI, you’re now calling performBackgroundTask(_:) method. This creates and executes the code block on that private context.

The private context created by performBackgroundTask(_:) is on a private queue, which doesn’t block the main UI queue. You could also manually create a new temporary private context with a concurrency type of .privateQueueConcurrencyType instead of using performBackgroundTask(_:).

Next, find the following code in the same method:

  print("Export Path: \(exportFilePath)")
  self.navigationItem.leftBarButtonItem =
    self.exportBarButtonItem()
  self.showExportFinishedAlertView(exportFilePath)
} else {
  self.navigationItem.leftBarButtonItem =
    self.exportBarButtonItem()
}

Replace the code with the following:

    print("Export Path: \(exportFilePath)")
    // 6
    DispatchQueue.main.async {
      self.navigationItem.leftBarButtonItem =
        self.exportBarButtonItem()
      self.showExportFinishedAlertView(exportFilePath)
    }
  } else {
    DispatchQueue.main.async {
      self.navigationItem.leftBarButtonItem =
        self.exportBarButtonItem()
    }
  }
} // 7 Closing brace for performBackgroundTask

To finish off the task:

6. You should always perform all operations related to the UI on the main queue, such as showing an alert view when the export operation is finished; otherwise, unpredictable things might happen. Use DispatchQueue.main.async to show the final alert view message on the main queue.
7. Finally, add a closing curly brace to close the block you opened earlier in step 1 via the performBackgroundTask(_:) call.

surf

Now that you’ve moved the export operation to a new context with a private queue, build and run to see if it works!

You should see exactly what you saw before:

Tap the Export button in the top left, and immediately try to scroll the list of surf session journal entries. Notice anything different this time? The export operation still takes several seconds to complete, but the table view continues to scroll during this time. The export operation is no longer blocking the UI.

Cowabunga, dude! Gnarly job making the UI more responsive.

You’ve just witnessed how doing work on a private background queue can improve a user’s experience with your app. Now you’ll expand on the use of multiple contexts by examining a child context.

Editing On a Scratchpad

Right now, SurfJournal uses the main context (coreDataStack.mainContext) when creating a new journal entry or viewing an existing one. There’s nothing wrong with this approach; the starter project works as-is.

For journaling-style apps like this one, you can simplify the app architecture by thinking of edits or new entries as a set of changes, like a scratch pad. As the user edits the journal entry, you update the attributes of the managed object. Once the changes are complete, you either save them or throw them away, depending on what the user wants to do.

You can think of child managed object contexts as temporary scratch pads that you can either discard completely, or save and send the changes to the parent context.

But what is a child context, technically?

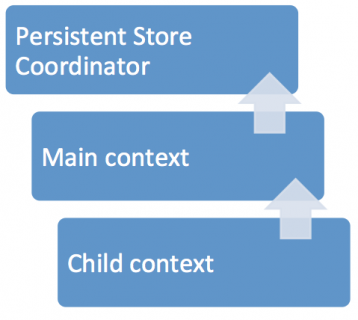

All managed object contexts have a parent store from which you can retrieve and change data in the form of managed objects, such as the JournalEntry objects in this project. Typically, the parent store is a persistent store coordinator, which is the case for the main context provided by the CoreDataStack class. Alternatively, you can set the parent store for a given context to another managed object context, making it a child context.

When you save a child context, the changes only go to the parent context. Changes to the parent context won’t be sent to the persistent store coordinator until the parent context is saved.

Before you jump in and add a child context, you need to understand how the current viewing and editing operation works.

Viewing and Editing

The first part of the operation requires segueing from the main list view to the journal detail view. Open JournalListViewController.swift and find prepare(for:sender:):

// 1
if segue.identifier == "SegueListToDetail" {
  // 2
  guard let navigationController =
    segue.destination as? UINavigationController,
    let detailViewController =
      navigationController.topViewController
        as? JournalEntryViewController,
    let indexPath = tableView.indexPathForSelectedRow else {
      fatalError("Application storyboard mis-configuration")
  }
  // 3
  let surfJournalEntry =
    fetchedResultsController.object(at: indexPath)
  // 4
  detailViewController.journalEntry = surfJournalEntry
  detailViewController.context =
    surfJournalEntry.managedObjectContext
  detailViewController.delegate = self

Taking the segue code step-by-step:

1. There’s two segues: SegueListToDetail and SegueListToDetailAdd. The first, shown in the previous code block, runs when the user taps on a row in the table view to view or edit a previous journal entry.
2. Next, you get a reference to the JournalEntryViewController the user is going to end up seeing. It’s presented inside a navigation controller so there’s some unpacking to do. This code also verifies that there’s a selected index path in the table view.
3. Next, you get the JournalEntry selected by the user, using the fetched results controller’s object(at:) method.
4. Finally, you set all required variables on the JournalEntryViewController instance. The surfJournalEntry variable corresponds to the JournalEntry entity resolved in step 3. The context variable is the managed object context to be used for any operation; for now, it just uses the main context. The JournalListViewController sets itself as the delegate of the JournalEntryViewController so it can be informed when the user has completed the edit operation.

SegueListToDetailAdd is similar to SegueListToDetail, except the app creates a new JournalEntry entity instead of retrieving an existing one. The app executes SegueListToDetailAdd when the user taps the plus (+) button on the top-right to create a new journal entry.

Now that you know how both segues work, switch to JournalEntryViewController.swift and look at the JournalEntryDelegate protocol at the top of the file:

protocol JournalEntryDelegate {
  func didFinish(viewController: JournalEntryViewController,
                 didSave: Bool)
}

The JournalEntryDelegate protocol is very short and consists of only one method: didFinish(viewController:didSave:). This method, which the protocol requires the delegate to implement, indicates if the user is done editing or viewing a journal entry and whether any changes should be saved.

To understand how didFinish(viewController:didSave:) works, switch back to JournalListViewController.swift and find that method:

func didFinish(viewController: JournalEntryViewController,
               didSave: Bool) {
  // 1
  guard didSave,
    let context = viewController.context,
    context.hasChanges else {
      dismiss(animated: true)
      return
  }
  // 2
  context.perform {
    do {
      try context.save()
    } catch let error as NSError {
      fatalError("Error: \(error.localizedDescription)")
    }
    // 3
    self.coreDataStack.saveContext()
  }
  // 4
  dismiss(animated: true)
}

Taking each numbered comment in turn:

1. First, use a guard statement to check the didSave parameter. This will be true if the user taps the Save button instead of the Cancel button, so the app should save the user’s data. The guard statement also uses the hasChanges property to check if anything’s changed; if nothing has changed, there’s no need to waste time doing more work.
2. Next, save the JournalEntryViewController context inside of a perform(_:) closure. The code sets this context to the main context; in this case it’s a bit redundant since there’s only one context, but this doesn’t change the behavior.

   Once you add a child context to the workflow later on, the JournalEntryViewController context will be different from the main context, making this code necessary.

   If the save fails, call fatalError to abort the app with the relevant error information.

3. Next, save the main context via saveContext, defined in CoreDataStack.swift, persisting any edits to disk.
4. Finally, dismiss the JournalEntryViewController.

There’s a problem with the above implementation — have you spotted it?

When the app adds a new journal entry, it creates a new object and adds it to the managed object context. If the user taps the Cancel button, the app won’t save the context, but the new object will still be present. If the user then adds and saves another entry, the canceled object will still be present! You won’t see it in the UI unless you’ve got the patience to scroll all the way to the end, but it will show up at the bottom of the CSV export.

You could solve this problem by deleting the object when the user cancels the view controller. But what if the changes were complex, involved multiple objects, or required you to alter properties of an object as part of the editing workflow? Using a child context will help you manage these complex situations with ease.

Using Child Contexts for Sets of Edits

Now that you know how the app currently edits and creates JournalEntry entities, you’ll modify the implementation to use a child managed object context as a temporary scratch pad.

It’s easy to do — you simply need to modify the segues. Open JournalListViewController.swift and find the following code for SegueListToDetail in prepare(for:sender:):

detailViewController.journalEntry = surfJournalEntry
detailViewController.context =
  surfJournalEntry.managedObjectContext
detailViewController.delegate = self

Next, replace that code with the following:

// 1
let childContext = NSManagedObjectContext(
  concurrencyType: .mainQueueConcurrencyType)
childContext.parent = coreDataStack.mainContext

// 2
let childEntry = childContext.object(
  with: surfJournalEntry.objectID) as? JournalEntry

// 3
detailViewController.journalEntry = childEntry
detailViewController.context = childContext
detailViewController.delegate = self

Here’s the play-by-play:

1. First, you create a new managed object context named childContext with a .mainQueueConcurrencyType. Here you set a parent context instead of a persistent store coordinator as you would normally do when creating a managed object context. Here, you set parent to mainContext of your CoreDataStack.
2. Next, you retrieve the relevant journal entry using the child context’s object(with:) method. You must use object(with:) to retrieve the journal entry because managed objects are specific to the context that created them. However, objectID values are not specific to a single context, so you can use them when you need to access objects in multiple contexts.
3. Finally, you set all required variables on the JournalEntryViewController instance. This time, you use childEntry and childContext instead of the original surfJournalEntry and surfJournalEntry.managedObjectContext.

Build and run your app; it should work exactly as before. In this case, no visible changes to the app are a good thing; the user can still tap on a row to view and edit a surf session journal entry.

By using a child context as a container for the journal edits, you’ve reduced the complexity of your app’s architecture. With the edits on a separate context, canceling or saving managed object changes is trivial.

Nice work, dude! You’re no longer a kook when it comes to multiple managed object contexts. Bodacious!

Where to Go From Here?

You can download the finished project from this tutorial here.

If you followed this tutorial all the way through, you’ve turned an app with a single managed object context into an app with multiple contexts.

You improved UI responsiveness by performing the export operation on a private background managed object context, and you improved the app’s architecture by creating a child context and using it like a scratch pad.

But best of all, you learned how to talk like a surfer. That’s a good day’s work!

If you enjoyed what you learned in this tutorial, why not check out the complete Core Data by Tutorials book, available in our store?

Here’s a taste of what’s in the book:

1. Chapter 1, Your First Core Data App: You’ll click File\New Project and write a Core Data app from scratch! This chapter covers the basics of setting up your data model and then adding and fetching records.

2. Chapter 2, NSManagedObject Subclasses: NSManagedObject is the base data storage class of your Core Data object graphs. This chapter will teach you how you customize your own managed object subclasses to store and validate data.

3. Chapter 3, The Core Data Stack: Under the hood, Core Data is made up of many parts working together. In this chapter, you’ll learn about how these parts fit together, and move away from the starter Xcode template to build your own customizable system.

4. Chapter 4, Intermediate Fetching: Your apps will fetch data all the time, and Core Data offers many options for getting the data to you efficiently. This chapter covers more advanced fetch requests, predicates, sorting and asynchronous fetching.

5. Chapter 5, NSFetchedResultsController: Table views are at the core of many iOS apps, and Apple wants to make Core Data play nicely with them! In this chapter, you’ll learn how NSFetchedResultsController can save you time and code when your table views are backed by data from Core Data.

6. Chapter 6, Versioning and Migration: As you update and enhance your app, its data model will almost certainly need to change. In this chapter, you’ll learn how to create multiple versions of your data model and then migrate your users forward so they can keep their existing data as they upgrade.

7. Chapter 7, Unit Tests: Testing is an important part of the development process, and you shouldn’t leave Core Data out of that! In this chapter, you’ll learn how to set up a separate test environment for Core Data and see examples of how to test your models.

8. Chapter 8, Measuring and Boosting Performance: No one ever complained that an app was too fast, so it’s important to be vigilant about tracking performance. In this chapter, you’ll learn how to measure your app’s performance with various Xcode tools and then pick up some tips for dealing with slow spots in your code.

9. Chapter 9, Multiple Managed Object Contexts: In this final chapter, you’ll expand the usual Core Data stack to include multiple managed object contexts. You’ll learn how this can improve perceived performance and help make your app architecture less monolithic and more compartmentalized.

And to help sweeten the deal, the digital edition of the book is on sale for $49.99! But don’t wait — this sale price is only available for a limited time.

Speaking of sweet deals, be sure to check out the great prizes we’re giving away this year with the iOS 11 Launch Party, including over $9,000 in giveaways!

To enter, simply retweet this post using the #ios11launchparty hashtag by using the button below:

Tweet

We hope you enjoy this update, and stay tuned for more book releases and updates!

The post Multiple Managed Object Contexts with Core Data Tutorial appeared first on Ray Wenderlich.
